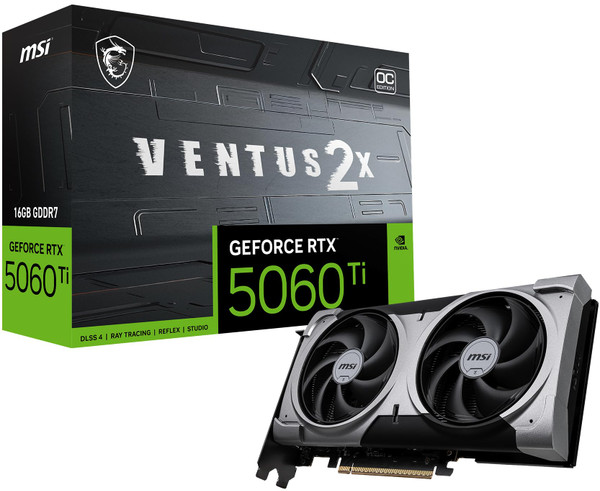

MSI Gaming RTX 5060 Ti 16G Ventus 2X OC Plus

$509.99
SKU:
G506T16V2CP
UPC:
824142418567
  • 16GB GDDR7 memory for ultra-fast gaming
  • Dual fans with efficient STORMFORCE cooling
  • Boost clock up to 2,617 MHz for max performance
  • Supports 8K resolution via HDMI 2.1 & DP 2.1
  • In Stock

    MSI Gaming RTX 5060 Ti 16G Ventus 2X OC Plus Graphics Card (16GB GDDR7, 128-bit, Extreme Performance: TBA MHz, DisplayPort x 3 2.1a, HDMI 2.1b, NVIDIA Blackwell Architecture)

    The MSI GeForce RTX 5060 Ti VENTUS 2X OC PLUS combines power and efficiency in a sleek, dual-fan design—perfect for high-performance gaming and compact builds. Built on NVIDIA’s Blackwell architecture, it delivers exceptional 1440p performance with support for advanced ray tracing and DLSS 4.

    Equipped with 4,608 CUDA cores and factory-overclocked boost speeds up to 2,617 MHz, this card ensures smooth frame rates in modern games. Its 16GB of ultra-fast GDDR7 memory on a 128-bit bus offers the bandwidth needed for high-resolution textures and future-proofed performance.

    The VENTUS 2X cooler provides quiet, efficient thermal control in a compact 2-slot, 227mm-long form factor—ideal for small form factor PCs. With PCIe 5.0 support, HDMI 2.1b, and triple DisplayPort 2.1 outputs, it's ready for high-refresh 1440p or 4K gaming.

    Whether you're building a performance-focused rig or upgrading for next-gen titles, the RTX 5060 Ti VENTUS 2X OC PLUS offers strong value with premium features in a compact footprint.

    MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS – Spec Sheet

    MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS

    GPU & Architecture

    GPU Chip (NVIDIA)GB206 (Blackwell architecture)
    CUDA Cores4,608
    Tensor Cores144 (5th‑gen)
    RT Cores36 (4th‑gen)

    Clock Speeds

    Base Clock2,407 MHz
    Boost ClockUp to 2,602 MHz (OC Plus mode: 2,617 MHz via MSI Center)

    Memory

    Capacity & Type16 GB GDDR7 @ 28 Gbps
    Bus Width128‑bit
    Bandwidth≈448 GB/s

    Display Outputs

    DisplayPort3× DisplayPort 2.1b
    HDMI1× HDMI 2.1b
    Max Resolution4K @ 480 Hz; 8K @ 120 Hz w/ DSC

    Physical & Power

    InterfacePCI‑Express 5.0 (x8)
    Power Connector1× 8‑pin PCIe
    Power Consumption (TDP)180 W
    Recommended PSU600 W
    Dimensions227 × 127 × 41 mm
    Weight≈600 g (card); ≈862 g (with packaging)
    CoolingDual STORMFORCE fans (HEX blade design)

    Technology Support

    DirectX12 Ultimate
    OpenGL4.6
    Vulkan1.4

    Sources: Official MSI specs, TechPowerUp, GPU databases.
