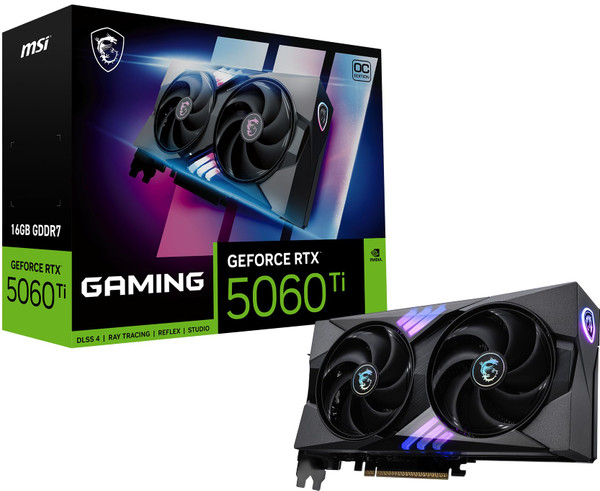

MSI GeForce RTX™ 5060 Ti 16G Gaming OC – High-Performance Blackwell GPU
The MSI GeForce RTX™ 5060 Ti 16G Gaming OC harnesses NVIDIA’s cutting-edge Blackwell architecture, delivering next-gen gaming performance with extreme efficiency. With 16GB of ultra-fast GDDR7 memory, advanced ray tracing, and AI-powered DLSS 3.5 frame generation, this card is tuned for smooth 1440p high-refresh and entry-level 4K gaming experiences. The iconic MSI GAMING series cooler ensures top-tier thermal performance and quiet operation.
Core Specifications
-
GPU: NVIDIA® GeForce RTX™ 5060 Ti (Blackwell architecture)
-
CUDA Cores: TBA (expected >4,300)
-
Memory: 16GB GDDR7
-
Memory Interface: 128-bit
-
Boost Clock: TBA MHz (Extreme Performance OC Mode)
-
Bus Standard: PCI Express 4.0
Cooling & Design
-
TWIN FROZR 9 Thermal Design – TORX Fan 5.0 with advanced airflow optimization
-
Zero Frozr Technology – silent fan stop during idle or low workloads
-
Airflow Control – guides airflow for improved heat dissipation
-
Mystic Light RGB – customizable lighting integrated with MSI Center
Display & Connectivity
-
Outputs:
-
1× HDMI® 2.1b
-
3× DisplayPort™ 2.1a
-
-
Max Digital Resolution: 7680×4320 (8K UHD)
Power Requirements
-
Recommended PSU: 600W
-
Power Connector: 1× 8-pin PCIe
-
Typical Power Draw: ~165W (expected)
Physical Dimensions
-
Length (Depth): ~308 mm (12.13 inches)
-
Height: ~125 mm (4.92 inches)
-
Slot Size (Thickness): 2.5-slot (~2.0 inches thick)
MSI GeForce RTX 5060 Ti 16G GAMING OC – Specifications
| GPU | NVIDIA GeForce RTX 5060 Ti (Blackwell, GB206) |
|---|---|
| CUDA Cores | 4,608 |
| Clock Speeds |
Extreme Performance: 2,662 MHz (via MSI Center) Boost: 2,647 MHz (Gaming & Silent Mode) :contentReference[oaicite:2]{index=2} |
| Memory | 16 GB GDDR7, 128-bit @ 28 Gbps (~448 GB/s) :contentReference[oaicite:3]{index=3} |
| Interface | PCIe Gen 5 ×16 (electrically ×8) :contentReference[oaicite:4]{index=4} |
| Power Consumption (TDP) | 180 W |
| Power Connector | 1 × 16-pin (ATX 3.1 recommended PSU) :contentReference[oaicite:5]{index=5} |
| Display Outputs | 3 × DisplayPort 2.1b; 1 × HDMI 2.1b (8K/120 Hz w/ DSC) :contentReference[oaicite:6]{index=6} |
| Max Resolution | 7680 × 4320 (8K UHD) |
| Outputs Supported | Up to 4 displays |
| APIs | OpenGL 4.6, G-SYNC |
| Thermal Design | TWIN FROZR 10 with STORMFORCE fans, nickel-plated baseplate, CORE PIPES, wave-curved fins, Air Antegrade Fin 2.0, metal backplate with vents & thermal pads :contentReference[oaicite:7]{index=7} |
| Dimensions | 247 × 135 × 51 mm |
| Weight (Card / Packaged) | 781 g / 1,181 g :contentReference[oaicite:8]{index=8} |
| Compute Performance | ~26.21 TFLOPS FP32 (36 SMs) :contentReference[oaicite:9]{index=9} |
| Features | DLSS 4 with Multi-Frame Generation, 5th-gen Tensor & 4th-gen RT Cores, NVIDIA Reflex 2, NVIDIA Studio, DLSS, Afterburner support :contentReference[oaicite:10]{index=10} |
